Beats input running, configuration for sidecar created but port 5044 is not open

Graylog Central (peer support)
,
1

Hello,
I am running on Windows docker container of Graylog 3.3 using docker-compose setting from documentation ( Version 4.0 does not come up).
I have been trying for the last two days to make sidecar beats to work but no matter what I try I get connection refused filebeat error(Sidecar connect properly and filebeats configuration is properly overwritten when I restart Graylog sidecar service).

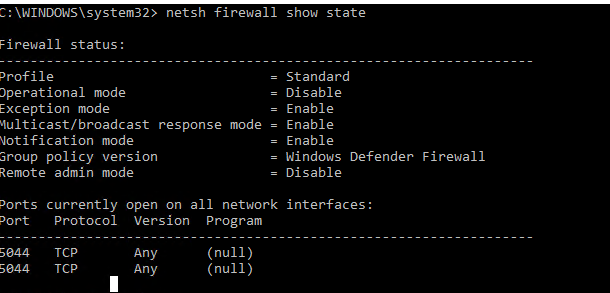

I monitor port 5044 is not open:
Port 5044 is not blocked:

but input status look fine:
And configuration looks fine too:

image1220Ă—164 12.1 KB

Here is sidecar configuration:
image718Ă—426 27.8 KB

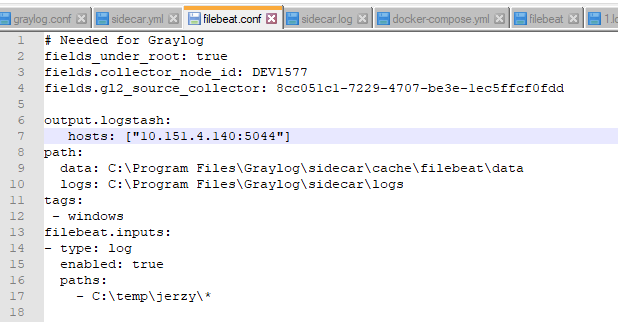

Here is generated filebat configuration:

filebat log:

image1274Ă—96 12 KB

Can somebody help me to make this work?
That would be great help

2

Hello,

Maybe I can help.
From what I can see in you logs " Failed to connect".
Maybe to troubleshoot your issue have you tried to configure your Graylog INPUT as “Global”?
See if you get some type of a connection.

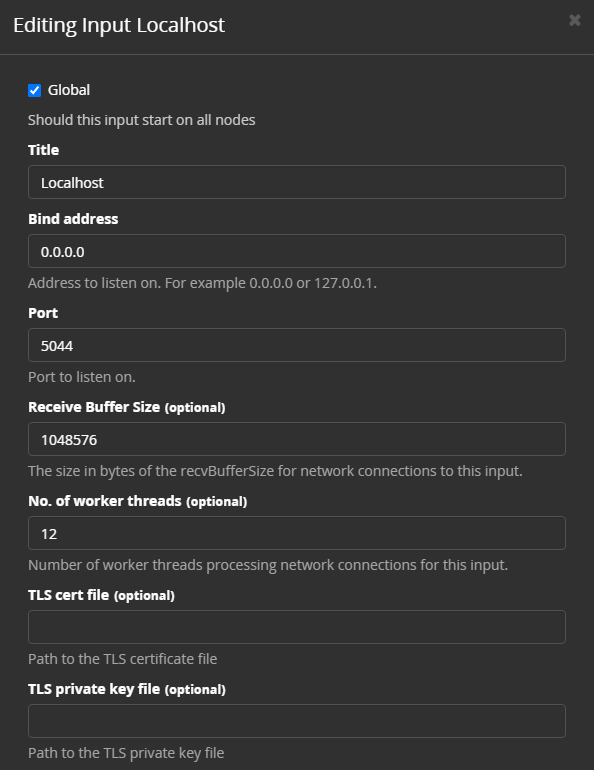

image594Ă—770 18.7 KB

3

Hello GSmith,
Thank you for your suggestion - I tried it but it didn’t help.
The problem was the fact that port 5044 was not on the list of ports in graylog docker-compose configuration.
On top of that port 5044 is within the reserved range for Docker in Windows.
I used port 45045 instead and I added it to graylog cluster port list.

I hope that this post will help somebody in the future.
Thanks again,
Jerzy
