Process IIS Logs with GROK patterns and Extractor

[neil0314]

I have successfully sent IIS logs to Graylog using NXlog. How can I create a pattern for the c-ip value in the message received by Graylog?

Here is my NXlog configuration:

<Extension w3c>
    Module xm_csv
    Fields $datetime, $c-ip
    FieldTypes string, string
    Delimiter ' '
    QuoteChar '"'
    EscapeControl TRUE
    UndefValue -
</Extension>
<Output out>
    Module om_udp
    Host 192.168.1.1000
    Port 13254
    Exec to_syslog_bsd();
</Output>

[Joel_Duffield]

If you use GELF to send the logs from nxlog to graylog then you wont need to parse the message, the fields will be automatically created. Send logs to Graylog :: NXLog Documentation

[gsmith]

Hey @neil0314

I agree with @Joel_Duffield

Something like this

<Extension _gelf>
    Module      xm_gelf
</Extension>

<Output out>
    Module om_udp
    Host 192.168.1.100
    Port 13254
    OutputType  GELF_UDP ( or just  GELF should work )
    Exec to_syslog_bsd();
</Output>

[neil0314]

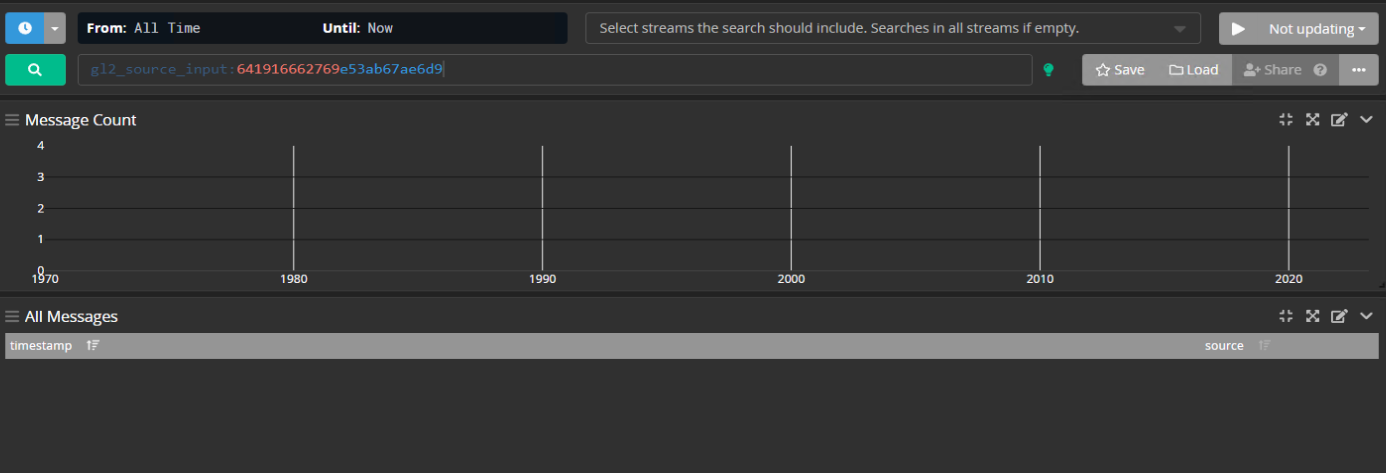

I used the following method and did not receive a message in message.
However, by adding an output to the log file and using Wireshark, I can confirm that the NXLOG message should have been sent out.

<Extension w3c>
    Module xm_csv
    Fields $datetime, $c-ip
    FieldTypes string, string
    Delimiter ' '
    QuoteChar '"'
    EscapeControl TRUE
    UndefValue -
</Extension>
<Input in>
    Module   im_file
    File     "C:\\inetpub\\logs\\LogFiles\\W3SVC2\\u_ex*.log"
    SavePos  TRUE
    Exec if $raw_event =~ /^#/ drop();                              \
        else                                                       \
        {                                                          \
          $raw_event = replace($raw_event, ' ', '@', 1);           \
          w3c->parse_csv();                                        \
          $raw_event = replace($raw_event, ' ', "\t");             \
          $raw_event = replace($raw_event, '@', ' ', 1);           \
          $EventTime = parsedate(replace($datetime, '@', ' ', 1) + '+08:00'); \
        }
</Input>
<Output out2>
    Module      om_file
	file		'C:\Program Files\nxlog\data\nxlog_output.log'
</Output>
<Output out>
    Module om_udp
    Host 192.168.1.100
    Port 13254
    #Exec to_syslog_bsd();
    OutputType GELF _UDP
</Output>
