Graylog + Opensearch cluster error

Jon_Doe · July 28, 2025, 12:01pm

Hello, so I have a problem with OpenSearch cluster. It says " OpenSearch cluster datanode-cluster is red. Shards: 87 active, 0 initializing, 0 relocating, 11 unassigned".

On “Streams > All events” tab it’s also returning error " While retrieving data for this widget, the following error(s) occurred:

OpenSearch exception [type=null_pointer_exception, reason=Cannot invoke “org.opensearch.search.aggregations.InternalAggregations.getSerializedSize()” because “reducePhase.aggregations” is null]."

OS Information:
Oracle Linux Server 8.10
Opensearch version: 2.15.0
MongoDB ver. 2.5.5

Any suggestions?

patrickmann · July 28, 2025, 4:34pm

What version of Graylog?

Jon_Doe · July 29, 2025, 5:29am

Sorry, graylog ver. 6.1.12+23f653e, codename Noir

Wine_Merchant · July 29, 2025, 8:33am

hey @Jon_Doe,

Could you run the below api calls (altering the hostname and ensuring you have generated certs) and post the result?

curl -X GET --key key_data.crt --cert cert_data.crt --cacert ca_data.crt -u :password -H 'Content-Type: application/json' https://node-name:9200/_cat/shards?=pretty

curl -X GET --key key_data.crt --cert cert_data.crt --cacert ca_data.crt -u :password -H 'Content-Type: application/json' https://node-name:9200/_cat/indices?=pretty

Jon_Doe · July 29, 2025, 10:17am

I have a self-signed certificate and the results are:

curl: (60) SSL certificate problem: unable to get local issuer certificate
More details here: curl - SSL CA Certificates

curl failed to verify the legitimacy of the server and therefore could not
establish a secure connection to it. To learn more about this situation and
how to fix it, please visit the web page mentioned above.

I read the manual and tried the following:
Tried with “-v” and the result is:

Trying ((IP))
TCP_NODELAY set
Connected to graylog ((IP)) port 9200 (#0)
ALPN, offering h2
ALPN, offering http/1.1
successfully set certificate verify locations:
CAfile: tomato-ca.crt
CApath: none
TLSv1.3 (OUT), TLS handshake, Client hello (1):
TLSv1.3 (IN), TLS handshake, Server hello (2):
TLSv1.3 (IN), TLS handshake, [no content] (0):
TLSv1.3 (IN), TLS handshake, Encrypted Extensions (8):
TLSv1.3 (IN), TLS handshake, Request CERT (13):
TLSv1.3 (IN), TLS handshake, Certificate (11):
TLSv1.3 (OUT), TLS alert, unknown CA (560):
SSL certificate problem: unable to get local issuer certificate
Closing connection 0

I’m still not sure how to fix it

Wine_Merchant · July 29, 2025, 10:56am

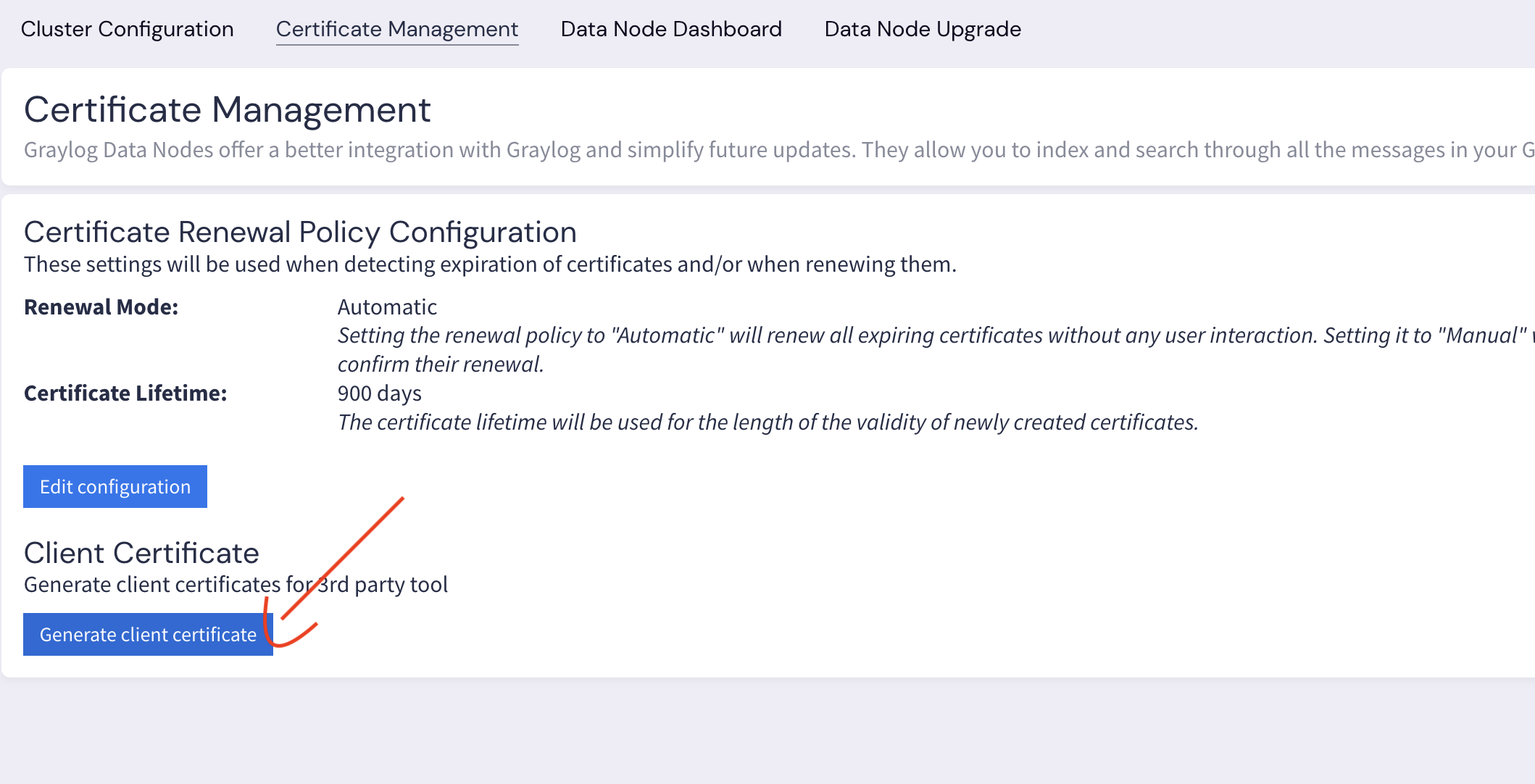

In order to query the Opensearch API you would need to generate a client cert from within the Graylog UI under system/cluster management and then the “Certificate Management” tab. Use the “Generate client certificate” option.

Jon_Doe · July 29, 2025, 12:09pm

Ok, so I’ve generated the certificates and created them manually on linux. I’m executing the command again with newly created files, but it seems i have to do something else:

curl: (51) SSL: no alternative certificate subject name matches target host name ‘graylog.DOMAIN.NAME’

Wine_Merchant · July 29, 2025, 12:14pm

The error suggests you are not using the hostname of the Data Node, under System/Cluster Management you should be able to see the hostname of your Data Node. Try that in the curl.

Jon_Doe · July 29, 2025, 12:37pm

Seems that it worked, but errors still occur. However this is the result:

.opendistro_security                                    0 p STARTED          10  76.1kb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.03-000120 0 p STARTED                     127.0.0.1 localhost
.ds-gl-datanode-metrics-000012                          0 p STARTED      376092  67.3mb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.05-000122 0 p STARTED                     127.0.0.1 localhost
.ds-gl-datanode-metrics-000010                          0 p STARTED       25803   5.1mb 127.0.0.1 localhost
.ds-gl-datanode-metrics-000011                          0 p STARTED        4270   1.5mb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.07-000124 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.09-000126 0 p STARTED                     127.0.0.1 localhost
.ds-gl-datanode-metrics-000003                          0 p STARTED        6398   1.4mb 127.0.0.1 localhost
.ds-gl-datanode-metrics-000004                          0 p STARTED       13840   2.8mb 127.0.0.1 localhost
gl-system-events_8                                      0 p STARTED           2  12.6kb 127.0.0.1 localhost
.ds-gl-datanode-metrics-000001                          0 p STARTED          92 133.1kb 127.0.0.1 localhost
gl-system-events_9                                      0 p STARTED           2  23.1kb 127.0.0.1 localhost
.ds-gl-datanode-metrics-000002                          0 p STARTED        3244 674.6kb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.14-000130 0 p STARTED                     127.0.0.1 localhost
gl-system-events_2                                      0 p UNASSIGNED
gl-system-events_3                                      0 p UNASSIGNED
.ds-gl-datanode-metrics-000009                          0 p STARTED        2879   1.1mb 127.0.0.1 localhost
gl-system-events_0                                      0 p UNASSIGNED
gl-system-events_1                                      0 p UNASSIGNED
.opendistro-ism-managed-index-history-2025.07.17-000133 0 p STARTED                     127.0.0.1 localhost
gl-system-events_6                                      0 p STARTED           2  12.6kb 127.0.0.1 localhost
.ds-gl-datanode-metrics-000007                          0 p STARTED       19738   3.3mb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.18-000134 0 p STARTED                     127.0.0.1 localhost
gl-system-events_7                                      0 p STARTED           2  12.6kb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.01-000118 0 p STARTED                     127.0.0.1 localhost
.ds-gl-datanode-metrics-000008                          0 p STARTED       17301   3.3mb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.02-000119 0 p STARTED                     127.0.0.1 localhost
.ds-gl-datanode-metrics-000005                          0 p STARTED       17303   3.7mb 127.0.0.1 localhost
gl-system-events_4                                      0 p UNASSIGNED
.ds-gl-datanode-metrics-000006                          0 p STARTED        3392 742.2kb 127.0.0.1 localhost
gl-system-events_5                                      0 p UNASSIGNED
.opendistro-ism-managed-index-history-2025.07.29-000145 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.06-000123 0 p STARTED                     127.0.0.1 localhost
.opendistro-job-scheduler-lock                          0 p STARTED          23  48.2kb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.13-000129 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.06.29-000116 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.25-000141 0 p STARTED                     127.0.0.1 localhost
graylog_25                                              0 p UNASSIGNED
graylog_24                                              0 p STARTED    22765666  16.3gb 127.0.0.1 localhost
graylog_27                                              0 p UNASSIGNED
graylog_29                                              0 p STARTED    22555269  15.5gb 127.0.0.1 localhost
graylog_28                                              0 p STARTED    22246613  15.7gb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.22-000138 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.21-000137 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.20-000136 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.23-000139 0 p STARTED                     127.0.0.1 localhost
graylog_30                                              0 p STARTED    28219730  19.5gb 127.0.0.1 localhost
graylog_32                                              0 p STARTED    23345103  15.6gb 127.0.0.1 localhost
graylog_31                                              0 p STARTED    26939066  18.5gb 127.0.0.1 localhost
graylog_34                                              0 p STARTED    26869224  18.6gb 127.0.0.1 localhost
graylog_33                                              0 p STARTED    27777788  18.8gb 127.0.0.1 localhost
graylog_36                                              0 p STARTED    25590725  17.9gb 127.0.0.1 localhost
graylog_35                                              0 p STARTED    25396071  17.5gb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.28-000144 0 p STARTED                     127.0.0.1 localhost
graylog_38                                              0 p STARTED    22290096  15.3gb 127.0.0.1 localhost
graylog_37                                              0 p STARTED    27799321  19.6gb 127.0.0.1 localhost
graylog_39                                              0 p STARTED    21715131  15.2gb 127.0.0.1 localhost
.opendistro-ism-config                                  0 p STARTED                     127.0.0.1 localhost
graylog_40                                              0 p STARTED    16377598  11.7gb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.24-000140 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.12-000128 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.26-000142 0 p STARTED                     127.0.0.1 localhost
graylog_9                                               0 p STARTED    28747105  19.4gb 127.0.0.1 localhost
graylog_8                                               0 p STARTED    29059514  19.6gb 127.0.0.1 localhost
graylog_7                                               0 p UNASSIGNED
graylog_6                                               0 p STARTED    22228707  15.3gb 127.0.0.1 localhost
graylog_1                                               0 p STARTED    25784097  17.8gb 127.0.0.1 localhost
graylog_0                                               0 p UNASSIGNED
.opendistro-ism-managed-index-history-2025.07.15-000131 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.16-000132 0 p STARTED                     127.0.0.1 localhost
graylog_10                                              0 p STARTED    26754847  18.8gb 127.0.0.1 localhost
graylog_5                                               0 p STARTED    25077573  16.8gb 127.0.0.1 localhost
graylog_4                                               0 p STARTED    23404912  15.6gb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.19-000135 0 p STARTED                     127.0.0.1 localhost
graylog_12                                              0 p STARTED    22057572  15.5gb 127.0.0.1 localhost
graylog_3                                               0 p STARTED    22514593  15.1gb 127.0.0.1 localhost
graylog_11                                              0 p STARTED    26417563  18.9gb 127.0.0.1 localhost
graylog_2                                               0 p STARTED    26135340  17.7gb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.27-000143 0 p STARTED                     127.0.0.1 localhost
graylog_14                                              0 p STARTED    22964261    16gb 127.0.0.1 localhost
graylog_13                                              0 p STARTED    25986602  18.1gb 127.0.0.1 localhost
graylog_16                                              0 p STARTED    22771593  15.5gb 127.0.0.1 localhost
graylog_15                                              0 p STARTED    29123080  19.5gb 127.0.0.1 localhost
graylog_18                                              0 p STARTED    29033523  19.9gb 127.0.0.1 localhost
graylog_17                                              0 p STARTED    22364122  15.4gb 127.0.0.1 localhost
graylog_19                                              0 p STARTED    22881567  15.7gb 127.0.0.1 localhost
gl-events_1                                             0 p STARTED           0    208b 127.0.0.1 localhost
gl-events_0                                             0 p UNASSIGNED
.plugins-ml-config                                      0 p STARTED           1   3.9kb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.04-000121 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.06.30-000117 0 p STARTED                     127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.08-000125 0 p STARTED                     127.0.0.1 localhost
graylog_21                                              0 p STARTED    22484553  15.7gb 127.0.0.1 localhost
graylog_20                                              0 p STARTED    23008119  15.8gb 127.0.0.1 localhost
.opendistro-ism-managed-index-history-2025.07.11-000127 0 p STARTED                     127.0.0.1 localhost
graylog_23                                              0 p STARTED    22590856    16gb 127.0.0.1 localhost
graylog_22                                              0 p STARTED    27946184  19.7gb 127.0.0.1 localhost

drewmiranda-gl · July 29, 2025, 2:01pm

Can you share the output of? This will show a reason why the shards are unassigned.

curl -X GET --key key_data.crt --cert cert_data.crt --cacert ca_data.crt -u :password https://node-name:9200/_cluster/allocation/explain

Thanks!

Jon_Doe · July 30, 2025, 5:40am

{"index":"gl-system-events_2","shard":0,"primary":true,"current_state":"unassigned","unassigned_info":{"reason":"CLUSTER_RECOVERED","at":"2025-07-29T12:29:36.118Z","last_allocation_status":"no_valid_shard_copy"},"can_allocate":"no_valid_shard_copy","allocate_explanation":"cannot allocate because a previous copy of the primary shard existed but can no longer be found on the nodes in the cluster","node_allocation_decisions":[{"node_id":"((ID))","node_name":"localhost","transport_address":"((IP)):9300","node_attributes":{"shard_indexing_pressure_enabled":"true"},"node_decision":"no","store":{"found":false}}]}

So, is there an option to keep the data from those shards?

Wine_Merchant · July 30, 2025, 8:15am

Has the Opensearch cluster only ever been made up of 1 node, could there be an issue with one of the disks that comprises the underlying storage?

Jon_Doe · July 30, 2025, 10:44am

I’ve tried to add one additional node but it ended up not working so I’ve deleted it. Maybe I forgot to clear something, I’ll look into that

Wine_Merchant · July 31, 2025, 12:42pm

Could it be the shards/indices that are now missing had been stored on the datastore of the now deleted node.

Jon_Doe · August 5, 2025, 7:13am

Ok so, I wasn’t able to find any old files,

BUT I double-checked unassigned shards using curl ……. “https://localhost:9200/\_cat/shards?v&h=index,shard,prirep,state,unassigned.reason”

and then curl ……….. “https://localhost:9200/\_cat/indices?v”

and I overlooked that my missing 11 shards were empty, so I’ve used this:

EXAMPLE

curl -X POST -k -u admin:admin --cert cert.crt --key key.key --cacert ca.crt “https://localhost:9200/_cluster/reroute” -H ‘Content-Type: application/json’ -d ‘{“commands”: [{“allocate_empty_primary”: {“index”: “gl-events_0”,“shard”: 0,“node”: “localhost”,“accept_data_loss”: true}}]}’

and I had to do this for every shard. It’s working now, thank you guys

Wine_Merchant · August 5, 2025, 8:21am

Nice work and thanks for sharing the solution @Jon_Doe!
