Configuration ssl/tls graylog https

[jgutie45 (jose Manuel)]

Hello, all is read but maybe I should read it very inside again.
I made the configuration like in this video:
Installing Graylog 4 with MongoDB Elasticsearch on Debian 11 - YouTube

I am going to work in it more and more.

Thanks.
Have a nice day.

[jgutie45 (jose Manuel)]

Hi again MR GSMITH

I have configurated this of course, without ssl configuration all works, maybe I don´t express correctly.

http_bind_address = http://192.168.194.130:9000/
http_publish_uri = https://192.168.194.130:9000/
I have this error in the file /var/log/graylog-sidecar/sidecar.log

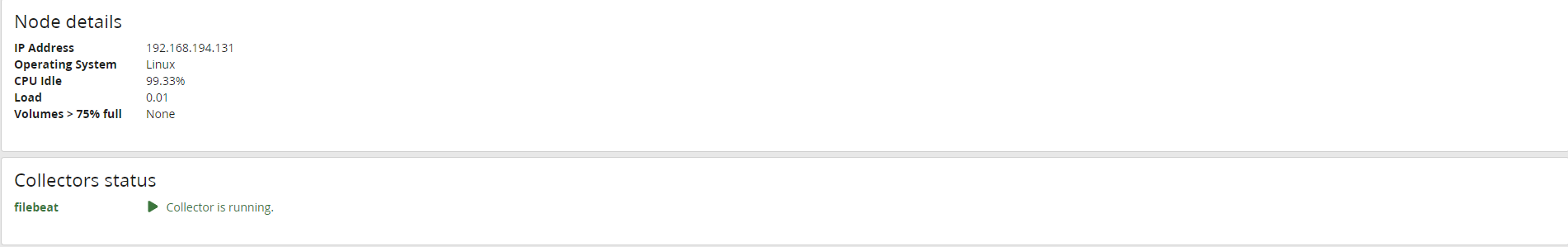

The front end put that all works perfect… No fails.

the /var/log/graylog-server/server.log in the server says this:

license no valid? What license? And no Inputs too, but what license?
Maybe the community software can be configured in ssl and tls mode?
Best regards.

[Marvin1]

You have to give Elastic/opensearch and Graylog the cert chain in the truststore.

sudo find / -name cacerts

sud keytool -import -keystore /Path/to/keystore -file /path/chain

The code is by default changeit

Probably the chain or the key is not in the correct format
to change this

pkcs7 in PEM

openssl pkcs7 -print_certs -in <certificatename>.p7b -out <certificatename.pem>

x509 in PEM

openssl x509 -in <certificatename.cer> -outform PEM -out <certificatename.pem>

remember to change the owner and reading writing permissions for the cert chain and the key

sudo chown graylog:graylog <private.key>
sudo chown graylog:graylog <cerificatename.pem>

sudo chmod 400 <private.key>
sudo chmod 400 <certificatename.pem>

Set the bind address in the server conf of graylog to
0.0.0.0:your Port

make sure the name the participants try to bind via https is listet in the cert as an alt name or ip
example:
http_publish_uri= https:graylog.org:8080
in the cert:
alt names: graylog.org

[jgutie45 (jose Manuel)]

thanks Mister

pkcs7? But is not the format of graylog pkcs8?

I did this secuence to create certificates, is it wrong?

1. mkdir /etc/ssl/certs/graylog/ && cd /etc/ssl/certs/graylog/

2. openssl req -x509 -days 1095 -nodes -newkey rsa:2048 -config openssl-graylog.cnf -keyout pkcs5-plain.pem -out cert.pem

3. openssl pkcs8 -in pkcs5-plain.pem -topk8 -nocrypt -out pkcs8-plain.pem

4. openssl pkcs8 -in pkcs5-plain.pem -topk8 -out pkcs8-encrypted.pem -passout pass:secret

5. openssl req -config openssl-graylog.cnf -out graylog.csr -new -newkey rsa:2048 -nodes -keyout graylog.key

6. openssl req -x509 -sha512 -nodes -days 1095 -newkey rsa:2048 -config openssl-graylog.cnf -keyout graylog.key -out graylog.crt

7. openssl req -config openssl-graylog.cnf -out graylog.csr -key graylog.key -new

8. openssl x509 -x509toreq -in graylog.crt -out graylog.csr -signkey graylog.key

In the next the password is secret

9. openssl pkcs12 -export -in graylog.crt -inkey graylog.key -out keystore.pfx

In the next the password is secret too.

10. openssl pkcs12 -in keystore.pfx -nokeys -out graylog-certificate.pem

the password is secret and phrase (what ever you want) is secret too.

11. openssl pkcs12 -in keystore.pfx -nocerts -out graylog-pkcs5.pem

you have to put the phrase secret and the Encryption password secret again.

12. openssl pkcs8 -in graylog-pkcs5.pem -topk8 -out graylog-key.pem

Ask to you and you say YES.

13. keytool -import -trustcacerts -file graylog.crt -alias graylog.enseva-labs.net -keystore graylog_keystore.jks -storepass changeit

ask to you password changeit

14. keytool -list -v -keystore graylog_keystore.jks -alias graylog.enseva-labs.net

Ask to you two passwords, both are changeit

15. keytool -importkeystore -srckeystore graylog_keystore.jks -destkeystore keystore.p12 -deststoretype PKCS12

te pide password que es changeit

16. openssl pkcs12 -in keystore.p12 -nokeys -out graylog-certificate.pem

ask to you a password. it is secret

17. openssl pkcs8 -in graylog-pkcs5.pem -topk8 -out graylog-key.pem

The next command in my case would be:

cp -a “/usr/lib/jvm/java-17-openjdk-amd64/lib/security/cacerts” /etc/ssl/certs/graylog/graylog-key.jks

18. cp -a “/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.171-7.b10.el7.x86_64/jre/lib/security/cacerts” /etc/ssl/certs/graylog/graylog-key.jks

19. keytool -importcert -keystore graylog.jks -storepass changeit (secret) -alias graylog.domain.com -file cert.pem

I am going to make that of de permissions… Sorry to be so heavy (like steve urkell in house things).

you mean thathttp_publish_uri= https:graylog.org:9000 inside that http_publish_uri= https:graylog.org:8080 don´t?

All of that is very very confuse… Oh! my god.

best regards.

[Marvin1]

The http_publish_uri with port i used was an example. Your actual Uri will be another.
Certs are very confusing, i know.
Basicly you get a Pkcs7 cert after sending a request. I would say Pkcs8 is the same like pem and this is what graylog need.

[jgutie45 (jose Manuel)]

Good morning Marvin

I am a little bit confuse with keystore and this comand

sudo keytool -import -keystore /Path/to/keystore -file /path/chain

when I execute this comand: sudo find / -name cacerts , the result is:
In the servere machine ofcourse:

/etc/ssl/certs/java/cacerts
/etc/default/cacerts
find: ‘/run/user/1000/gvfs’: Permission denied
/usr/share/elasticsearch/jdk/lib/security/cacerts
/usr/lib/jvm/java-17-openjdk-amd64/lib/security/cacerts

My certs and my keys are in /etc/ssl/certs/graylog/ and all of that is
-rwxrwxrwx 1 root root 1391 Jan 24 14:46 cert.pem
-r-------- 1 graylog graylog 1717 Jan 24 14:53 graylog-certificate.pem
-rwxrwxrwx 1 root root 1391 Jan 24 14:46 graylog.crt
-rwxrwxrwx 1 root root 3552 Jan 24 14:47 graylog.csr
-rwxrwxrwx 1 root root 1398 Jan 24 14:55 graylog.jks
-rwxrwxrwx 1 root root 1704 Jan 24 14:46 graylog.key
lrwxrwxrwx 1 root root 27 Jul 22 2022 graylog-key.jks → /etc/ssl/certs/java/cacerts
-r-------- 1 graylog graylog 1874 Jan 24 14:54 graylog-key.pem
-rwxrwxrwx 1 root root 1398 Jan 24 14:49 graylog_keystore.jks
-rwxrwxrwx 1 root root 1978 Jan 24 14:48 graylog-pkcs5.pem
-rwxrwxrwx 1 root root 1398 Jan 24 14:53 keystore.p12
-rwxrwxrwx 1 root root 2589 Jan 24 14:47 keystore.pfx
-rwxrwxrwx 1 root root 604 Jan 24 14:45 openssl-graylog.cnf
-rwxrwxrwx 1 root root 1704 Jan 24 14:46 pkcs5-plain.pem
-rwxrwxrwx 1 root root 1874 Jan 24 14:46 pkcs8-encrypted.pem
-rwxrwxrwx 1 root root 1704 Jan 24 14:46 pkcs8-plain.pem

is it ok? would be better put all of this in /anotherfile/, maybe?

so, how would this comand be? sudo keytool -import -keystore /Path/to/keystore -file /path/chain

keys certs, keystores, permissions… O h my god!

best regards, have a good weekend…

[jgutie45 (jose Manuel)]

yes I have plungin enterprise…

I will get a serial and TO BE CONTINUED.

Thanks to all.

[gsmith]

Hey

@jgutie45

/usr/lib/jvm/java-17-openjdk-amd64/lib/security/cacerts

That would be your JAva Default keystore.
